NJE-4000 ORION "The Hunter" Non-Linear Junction Detector (NLJD)
ORION (The Great Hunter) provides the capability to detect hidden electronic devices, regardless of whether the device is radiating, hard wired, or even turned on at all! ORION is the latest advancement in Nonlinear Junction Detection and evaluation for Counter surveillance. Model Number: ORION, Part Number: NJE-4000 or NJE4000
- Positioning the ORION over a suspicious package using a Tri-pod.
- Placing the ORION on a robot vehicle with the operator located away from any potential hazard to examine suspicious packages.
- Positioning the ORION over a conveyer belt carrying postal packages, and providing long term monitoring from a centralized location.
- Covert situations in which the technician must be out of sight. Placing the ORION in a chair, desk, or conference room table.

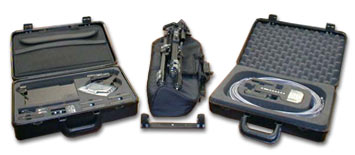

- Complete kit with the ORION and optional NLJD Tool Kit shown in the Left Case.
- Optional Tripod and the supplied ORION Mount Bracket with Softcase shown in middle.
- On the right is the Remote Control Module, 20 m ( 65 ft ) Cable, and External Power Supply.
- Power Source: Std. ORION Battery or 9-24 external DC @ 1.5A
- Cable Length: 20 Meters (65 ft) - Industrial Data Cable
- Audio Output: 3.5mm Headphone Jack
- Standard ORION Keypad & Display
Please be aware of the following:
- Previously purchased ORIONs will need to be sent to the factory for upgrade in order to utilize this new accessory. This upgrade is designated ORI-4000 ORION Upgrade and must be purchased direct from Granite Island Group.
- The ORION Remote Control RCM-4000 can only be used with ORIONs designated as remote capable.
- Do not extend the cable length over 20 meters.
- Do not use "off-the-shelf" serial type extension cables, as these do not have the current carrying capacity required.
- We suggest the use of the AC adapter as the primary power supply. Battery life will be reduced compared to normal ORION operation without the remote. The Remote may be powered by a properly polarized power supply with an output rating of 9 to 25 VDC at 1.5 amp, center pin positive barrel connector.
- External DC voltages greater than 25 VDC will cause damage to the remote control and/or the ORION.
- Application of voltages over 7.8VDC to the battery contacts or reversed polarity will cause damage.
- The AC adapter will provide a maintenance charge to the battery installed on the remote, but for full charge, always place the battery in the standard ORION NiCAD battery charger.
OTK4000 - Orion Support Tool-Kit
Inspection Tools for use with Non Linear Junction Detectors

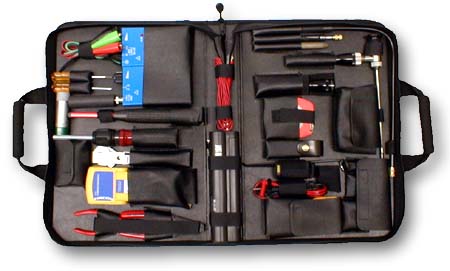

The OTK-4000 ORION Inspection tool kit contains selected tools for verifying the existence of threatening electronic surveillance devices. This tool kit is sold with the ORION Non-linear Junction Evaluator and provides tools that are uniquely suited for use with a Non-Linear Junction Detector. The OTK 4000 ORION tool kit is designed to fit inside the case with the ORION Non-Linear Junction Evaluator.
Included Inspection Tools:
Borescope with built-in light and right-angle viewing for inspection inside walls, furniture, etc...
Wire tracing system to trace miscellaneous cables.
Fluke Multi-meter for testing miscellaneous cables and electronic devices.
Combination Stud Finder and metal detector for non-destructive evaluation.
Hammer to evaluate the stability of a junction under the physical vibration.
Multi-purpose geared screwdriver. Provides screwdriver function as well as small drill for use with Borescope.
Misc. Tools: Pliers, wire cutters, Leatherman Tool, Inspection mirrors, measuring tape, flashlight, drill bits for walls.
Note: Some OTK-4000 tool models may change due to availability.
Warning:
If you are considering buying equipment listed on this page you would do well to ensure that you are dealing with a legitimate factory trained and certified organization like Granite Island Group.
We are factory trained and certified, with years of experience with this equipment. Our clients have been very pleased with our talent to supply equipment in a very timely manner, and with our honest and straight forward handling of their goods. Normally, we ship orders within 2-3 business days after the order is received (we often ship on the same day), and since we usually ship by express courier any delays are minimal. International shipments may take a little longer due to applicable export restrictions.
BEWARE: There are a huge number of crooked unreliable spyshops that will gladly take your money, but you will not get any equipment in return, or if you do get something it will not be what you ordered. These shady operators are not factory trained, have often never actually owned TSCM equipment or performed a bug sweep, and know virtually nothing about either the equipment being sold or TSCM. There has also been a rash of spyshops advertising this type of equipment at discounted prices (often online or via E-Bay), in almost every case the equipment is stolen, used, damaged, or the customer gets cheated out of their money. In some cases the equipment is used, damaged, or even a stolen unit. Many of these spyshops rip off graphics and/or materials from this website, and some are so bold as to claim copyright on these stolen materials. A few of them have even stolen materials from this site and then published them in book or CD form when you buy equipment from their spyshop. If they are ripping off materials from this site then they are likely going to rip you off as well... think about it...
We are honest, have an excellent reputation, and offer legitimate equipment, at fair prices, with favorable availability and shipping. We can, they can't.
Every TSCM team should have a NLJD, and the ORION is simply the finest instrument in the industry. Unlike other products the NJE 4000 ORION is not based on a knock-off of a product developed 30 years ago.
Detector (NLJD) Review and Tutorial
All TSCM equipment listed here is Dual-use Munitions List Items (MLI), or Commerce Controlled List Items (CCLI). MLI/CCLI items are highly controlled by the U. S. Government, and cannot be transferred, exported, sold, or given, to a foreign country, a non-U. S. Citizen or National, or a non-permanent U. S. Citizen, without a valid State and/or Commerce Department Export authorization that is issued in advance, and which actually issues forth from the Department of Defense and the U.S. Intelligence Community. Some equipment (or certain end users) even requires a formal authorization by the President of the United States for the transaction, and not even the DOS, DHS, DOC, DOD, DIA, or CIA can override this requirement.
It is the responsibility of the manufacture and of the end-user or purchaser, to comply with applicable requirements, and to obtain all necessary authorizations, licenses, or approvals to facilitate export, transport, possession, or acquisition. The use, disposition, export, import, or re-export of these items are subject to the provisions of law referencing written End-User Certification. Including, but not limited to, the Arms Export Control Act (22 USC 2751 et seq); Export Administration Act 1979 (50 USC App. 2041 et seq); as contained under Executive Order 12924; International Traffic in Arms Regulations (22 CFR 120 et seq); Export Administration Regulations (15 CFR 730 et seq); Foreign Assets Control Regulations (31 CFR 500 et seq); and the Espionage Act (18 USC 793 et seq), the Wassenaar Arrangement, and other treaties and laws. Even providing TSCM training, to someone who is not a U.S. Citizen requires also requires State Department approvals.
All TSCM, TEMPEST, SIGINT, and related equipment without exception is all covered by "The United States Munitions List" under ITAR 121.1, Category XI(b) as Military and Space Electronics, as "electronic systems or equipment designed or modified to counteract electronic surveillance or monitoring."
Most TSCM equipment is considered a Tier 1 defense article, but some more simplistic devices, tools, or systems may qualify only as Tier 2 devices on the USML or "Munitions List". Further, most TSCM equipment also qualifies as ECCN 5A001.e and 5A001 equipment and is subject to the export licensing authority of the Department of State, Directorate of Defense Trade Controls (22 CFR part 121).
By international treaty, most nations have laws that parallel these U.S. Laws (as arms controls), so that it is extremely difficult and costly to legitimately get this equipment across any borders of any country, and if you get caught with it, and you can not prove that you obtained in it very specific legitimate ways you could be in for a very awkward situation, but perhaps even not right away, but eventually.
This equipment, and this style of equipment and function of equipment was all initially designed by the U.S. Military, for purposes of military functions, and various companies evolved their products out of these military originated products, and then sold these new products back to the military which formed a closed loop that reinforced that these systems are still legally considered military arms.
Even if you are a U.S. Citizen and the equipment actually belongs to you and you are merely importing and importing it for your own use, you risk a forfeiture and seizure of all of your equipment that you are traveling with unless your paperwork is spot-on perfect.
Companies that manufacture TSCM and related equipment usually can not make a profit merely selling the equipment legitimately in their own country and they will often play games about the exportability of the gear, or will often falsify export paperwork in order to make an illegal sale (do not be taken for a fool). Generally, you should not trust what the company who actually makes the gear tells you, but instead seek the counsel of someone who actually works with a wide range of equipment across a range of companies and nations who can actually explain it in an unbiased way, these gurus, grey beards, engineers, and wizards can save you vast problems.
Better yet, go to your attorney, have then do some research, and then have THEM contact an expert in TSCM and assist them in gaining an in-depth understanding of the issues, then have them write inquiry letters to government agencies where the function and origin of the equipment is explained and ask for an official ruling from the government, in which your attorney then crafts into a legal memorandum. What the attorney eventually puts into their well researched memorandum will often dramatically be different then what the manufacture of the equipment will tell you.
As any legitimate approval for a transaction takes many weeks, and often months it is important to plan for notable delays, and not to wait until the very last minute to obtain needed gear. It is wisest for the actual end user to contact the U.S. Embassy in the country where the goods will ultimately be used, go through the interview and visitations process with them, initiate the end user approval process, and get approvals for the transaction six, eight, or even ten months in advance of the anticipated purchase from a cold-start. These pre-approvals are vital as they can usually reduce this approval time to less than 45 days (unless the customer is playing games). The custom in the industry is that once payment is made for the goods, the purchaser has only 90 days to perfect and consummate the shipment, so get as much pre-order approvals completed as possible (many companies have a deposit forfeiture policy if you do not get your export approval within 90 days, or double the regular approval cycle for ITAR 121.1 good for pre-approved entities).
Please call us if you have any questions, but generally, we will deal only with the actual end-user of the equipment, and will not deal with intermediaries, middle-men, or brokers. We always play it straight, we will not engage in export fraud, and we will have nothing to do with illegal arms shipments or trafficking. If you want to talk with a well recognized expert on these kinds of munitions and equipment, how to handle legitimate transaction, and avoid problems, then contact us, we can save you a lot of hassles.
Technical Advancements
Second and third harmonic operation includes advanced algorithms for minimizing false alarms as well as listening capability for each harmonic.
Dynamic power control for locating threats; automatic or manual control (10 mW to 1 watt).
Synthesized transceiver provides frequency stability and agility to automatically search for clean operating frequencies (Frequency range 902-928 MHz for US models and 880 MHz to 1,000 MHz for export models).
Circular, polarized antenna removes risk of missing a threat due to incorrect antenna polarization.
ORION Advantages
Minimum Set-up Time, no cables or bulky transceiver units to carry
Light weight, balanced ergonomic design for ease of use
High Transmit power for rapidly searching a large area
Circularly Polarized Antenna reduces search time and improves reliability
Dual Harmonic with Discrimination Algorithms Minimizes False Alarms
Standard type camcorder battery with long use time and quick charge function
Wireless Headphones and Graphic Display for simultaneous Audio and Visual Information
Lower priced with more capability!
require a quotation; please contact Granite Island Group by
telephone at: (978) 381-9111, or via E-mail at: jmatk@tscm.com
NJE4000 ORION Specifications
Transmitter
Frequency Bands: 880 - 1005 MHz using 200 kHz steps. USA versions: 902.2 - 927.8 MHz. Foreign models are adjustable between 880 and 1005 MHz. The unit is actually usable down to 850 MHz, but there is a 1-2 dB of loss in receiver sensitivity due to filter roll-off of the second harmonic.
Peak Power: 1.4 Watts (Effective Radiated Power including antenna gain and all system losses).
Power Control: 30 dB range in 2 dB steps. Pulsed to limit average output power to FCC max.
Receiver
Frequency Bands: Second (1700-2010 MHz) or third (2550-3015 MHz) harmonic of transmit fundamental frequency.
Sensitivity: -130 dBm for both Harmonics.
Gain Control: The gain of the unit is enhanced using software integration. Various modes of operation have different integration algorithms for maximum performance. The gain is controlled by setting the level of integration using the SET key.
Receiver IF BW: 3 kHz
Unit Operational Weight: 3.4 lbs (1.54 kg)
Antenna Polarization: Circular for both transmit and receiver functions.
Infrared Headphones
Headphones can be plugged directly into main unit or plugged into the Infrared Receiver.
Plugging Headphones into the main Unit turns off the IR transmit function on the main unit.
Plugging Headphones into the IR Audio Receiver automatically turns on the IR Audio Receiver.
Volume Control is adjusted via the main Unit.
Battery Specifications
Externally rechargeable standard type battery
7.2 VDC camcorder style NiCad
Run time 1 hour on full charge when operating at full power. Normal usage should result in run time hours.
Battery Charger
Dual battery charger with Automatic Operation.
Charging Time: approximately 45 minutes to 1 hour depending on battery vendor
Sequentially charges both batteries.
LED Indicators:
Flashing LED - Charge Pending (Applies to the situation when two batteries are simultaneously placed in the charger)
Bright LED - Fast Charging
Dark LED - No Battery or Charge Complete
NOTE: To test for faulty batteries, place a single battery in the charger. If the LED continues to flash and never goes Bright or Dark, then the battery is faulty and should be discarded.

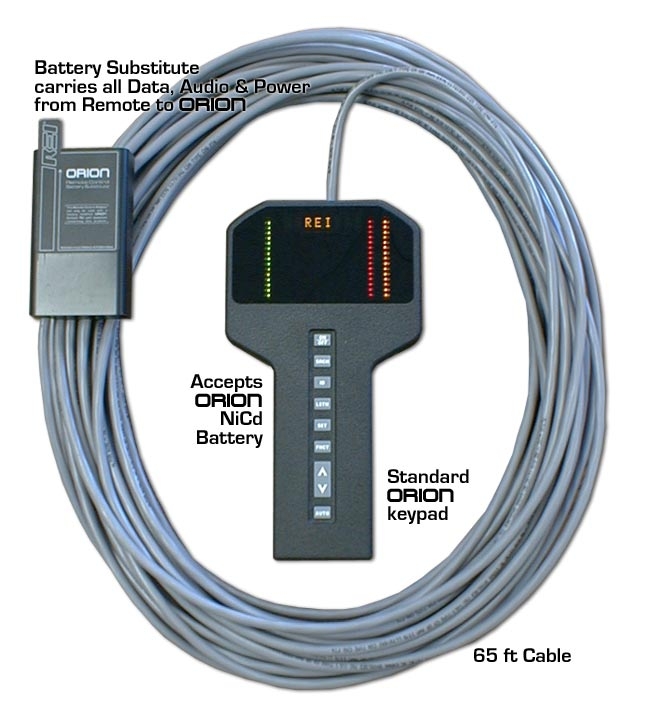

The RCM-4000 Remote Control Module is a new addition to the ORION.
The RCM enables the ORION to be placed in a fixed position and the operator to be stationed up to 20 meters away and possibly out of site of the ORION in a safe location. Operation using the remote control module is identical to normal ORION operating procedures. No additional training needed!
This ORION accessory is a direct result of requests from our clients, and many units have already been sold for anti-terrorism applications. The RCM-4000 has many practical uses. Most of these uses involve the pre-screening of packages, suspicious items, luggage, or people for electronics. Using this approach, the presence of electronic circuitry may be evaluated prior to using other detection equipment such as X-ray. Furthermore, this electronic evaluation may be conducted without moving or touching the suspicious item. Some examples are:
The ORC-4000 provides power for the ORION and itself through the use of a standard 7.2V NiCd ORION Battery or an External DC input from 9-24 Volts. When connected to an external power source the ORC is capable of providing a maintenance charge to the Battery on the ORC. Full charging should be done with the Quick Charger provided in the ORION Case.
Also available is an optional, heavy-duty, professional tripod (TRI-4000). This useful tool mounts the ORION in a fixed position. A custom mounting bracket for ORION is included with this optional accessory. A Hakuba soft carrying case is included when ordering the TRI-4000.
OPERATION:
When using the Remote Control Module, both the ORION and Remote keypads are always active. In other words, either keypad will automatically control the ORION operation. However, there is a "Dual Display" mode and a "Single Display" mode which control whether a single display or both displays are active. When "Dual Display" mode is selected both the ORION and Remote displays, are always on.
When the "Single Display" mode is selected, the display associated with the keypad being used is active and the other display is muted.
On a muted display, only a small flashing diamond indicates that the system is active. "Single display" mode conserves battery power, and some users may desire to blank the ORION display for security reasons.
Remote Dimensions: 106mm x 190mm (4.2 x 7.75 in.)
